ANG Test Flights Propel Polar Airlift Potential

DSC_0452
DSC_0452

We heard from Mark Doll today after he’d had a chance to catch up from “a great week in Greenland.”  That week, a flight period for the New York Air National Guard 109th Airlift Wing, included test flights of an eight-blade propeller system mounted on the LC-130 cargo planes, which provide the heavy airlift to the National Science Foundation’s polar research program.

How did it go?

“In short, the NP2000-equipped LC-130 works great,” wrote Lt Col Doll (the Air Guard's liaison to the National Science Foundation's polar program).

“During the week of 27-31 July, the 109th continued test flights with the 8-blade NP2000 propeller. The program consisted of two trips to Summit and one to Raven Camp. At each place, we conducted a series of take-offs at various weights both on the skiways and in the open snow. While we are still reducing the data, we can say that we set an unofficial take-off record at Summit: 143,000 lbs, -11 deg C - with an 18kt tailwind! Granted the snow was quite good, and the skiway in great shape, but no one expected a successful take-off under those conditions. The whole crew was surprised. We even took off from Summit open snow at 113,000 lbs; under normal conditions, that would have been impossible even with JATO.

July 30 09 skier 92DyeSiteEdStockard
July 30 09 skier 92DyeSiteEdStockard

“The NP2000 propeller offers reduced vibration, noise and maintenance costs, while increasing thrust. The absolute amount of increased thrust is still being determined. However, in our subjective opinion, it offers much better performance for ski take-offs. Our intent is to eventually equip all LC-130s with the NP2000 to increase our cargo-carrying capability while reducing the use of JATO.”

The planes, traditionally outfitted with four-blade propellers, have skis to land on snow and ice. And while these are absolutely essential at the poles where few paved runways exist, the LC-130s pay a high price in terms of efficiency: drag makes the "Ski Birds" ungainly on takeoff (and can lead to ski ways that are several miles long!) and it also reduces air speed.

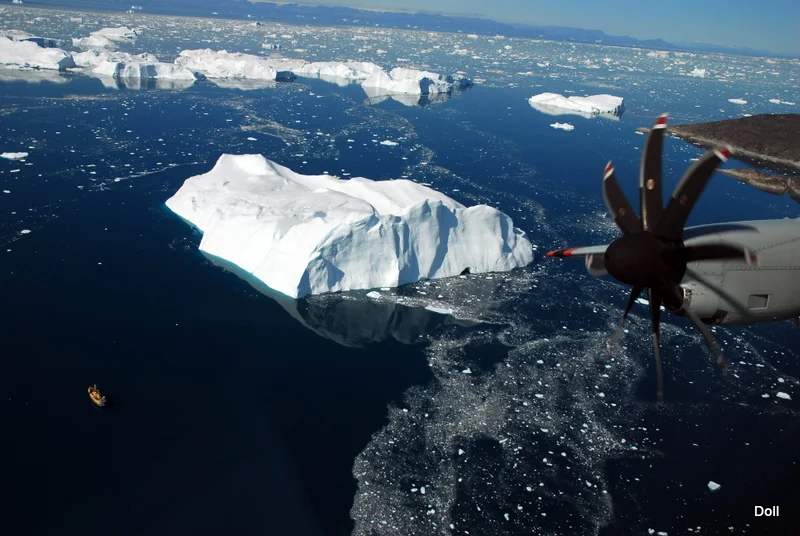

DSC_0269
DSC_0269

The test flights cap about 10 years of research and development for Doll and colleagues, he says.  Back in 1999, “I started asking questions about the thrust of the existing propeller so I could start to define the ski drag,” Doll recalls. ”I quickly was referred to Hamilton Standard (Hamilton Sundstrand) for some answers. That started the relationship that led to the NP2000 discussions. At the time, the propeller was being designed for the Navy's E-2 Hawkeye; the C-130 was only a dream.

“It has been a long road to get this far; and we're still a long way from success. Even after we prove the viability and capability of the NP2000, we still have to procure the funds for installation. Last week in Greenland was a success and brought us one step closer to an answer, no matter what the answer is.”
